Webb Single Workstation — 6×6 ft, 53″H Panels, Corner Top, Powered (WEBBTYP30)
- Ships nationwide, direct from the manufacturer
- In stock, ready to ship
- Inventory on the way

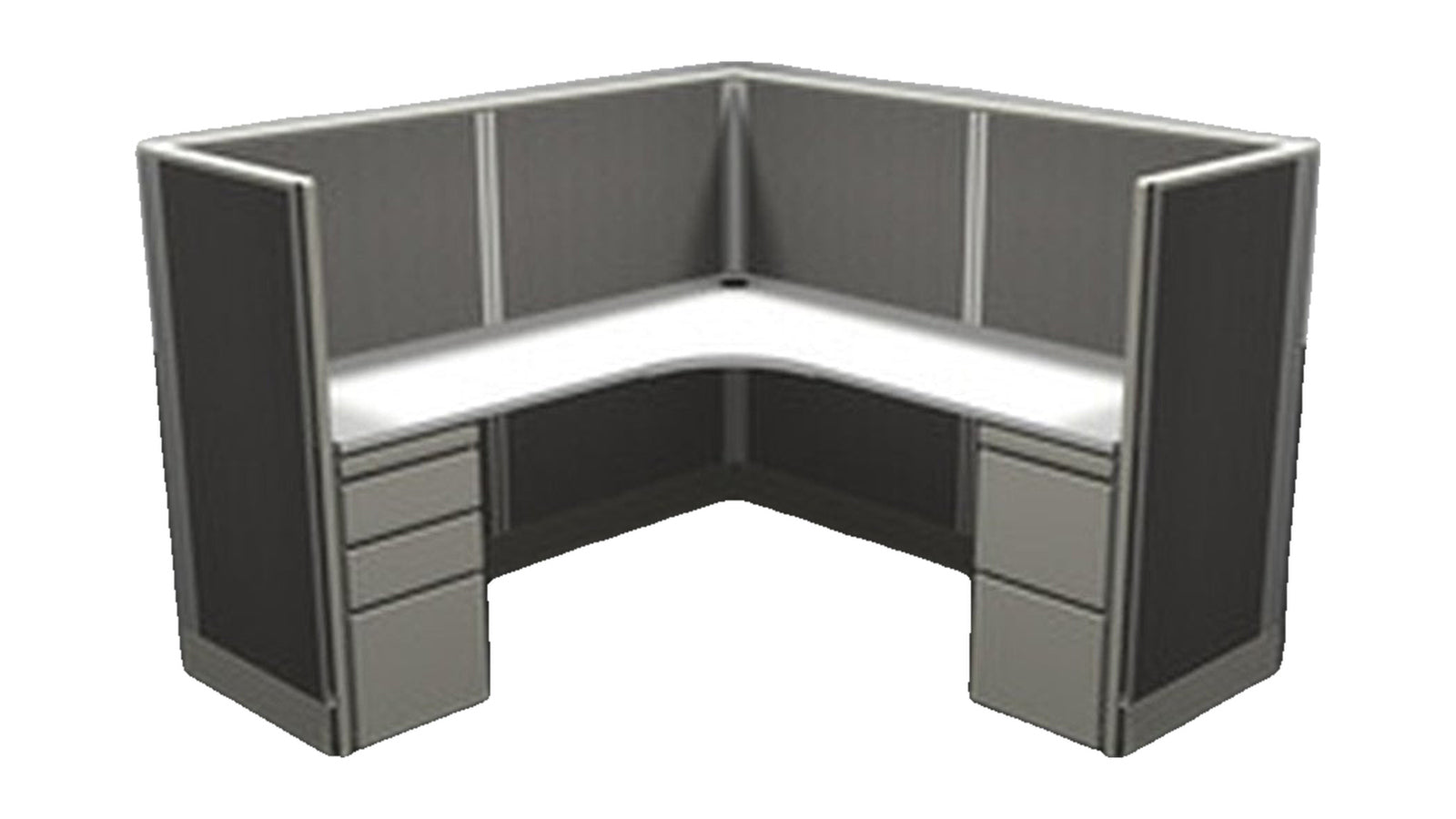

The WEBBTYP30 is a complete single-person workstation built on N9NE’s Webb panel system — 6×6 ft footprint, 53″-high panels, in a corner-top layout with a 36″ × 36″ corner worksurface. It arrives as a full kit — panels, connectors, worksurfaces, storage pedestals and hardware — with every component listed below. This configuration is powered: it includes an 8-wire, 4-circuit electrical system with receptacles and a base power feed, ready for connection by your electrician. Worksurfaces come in your choice of laminate finish.
WEBBTYP30 53″H, corner top, single person, powered, 6' x 6'. Includes one each BBF and FF storage pedestal.
- 2-inch-thick panels with a thin contemporary base, in neutral gray fabric with silver metal trim
- Slotted tracks to hang cantilevered worksurfaces or storage options
- Industry-standard wedge block and draw rod connections
- UL recognized
- 8-wire, 4-circuit electrical system with ceiling or standard base power feed
What’s included — complete component list
- PLT3636 × 1 — Corner Top 36″ x 36″
- PLT2436 × 2 — Rectangular Top 24″D X 36″W
- KTPCNT53CAP × 2 — 53″ End Cap Kit End of Run + Bottom End Cover Trim
- P5324NONPOWER × 2 — Panel 5324 NON-Power, includes raceway covers
- PCNT532WY × 3 — 53″ - 2 Way 90 degree connector
- P5336NONPOWER × 2 — Panel 5336 NON-Power, includes raceway covers
- P5336POWER × 2 — Panel 5336 POWER, includes power module and raceway covers
- PPDBBF × 1 — Pedestal, 20″D BBF
- PPDFF × 1 — Pedestal, 20″D FF
- PWSCNTL-L × 1 — Cantilever Left
- PWSCNTL-R × 1 — Cantilever Right
- PWSCNTLSRD × 2 — Cantilever Shared
- PWSCNRBRKT × 1 — Corner Bracket L/R (sold in pairs)
- PCNT53STR × 2 — 53″ - Straight Connector, Rod & Block Kit
- SP-JF-03-1 × 1 — Electrical, 19″ Jumper for straight connections
- PELDPLX1 × 1 — Receptacle Circuit 1 A
- PELDPLX2 × 1 — Receptacle Circuit 2 A
- PELDPLX3 × 1 — Receptacle Circuit 3 A
- PELDPX4ISO × 1 — Receptacle Circuit 4 DEDICATED D
- PELBSFD-L × 1 — Electrical, AO, Base Feed, 4 Circuit, 8 Wire
- PELOUTCVR × 3 — Raceway, Outlet Cover
Office chairs and accessories shown in scene renders are not included.
Ships nationwide by commercial freight direct from the manufacturer; white-glove delivery and professional installation available on request.
