OBEX Dealer · San Diego & Southern California
OBEX panel extenders & privacy screens
Whiteboard and clear acrylic dry-erase panels, cubicle extenders, desk screens, acoustic dividers, doors, and mobile partitions planned around the furniture you already have.
Clear acrylic, code CA, is the catalogue dry-erase option. Whiteboard panels are built to order.
Whiteboard privacy panels
Two ways to get a writable panel.
Clear acrylic, code CA, is the catalogue dry-erase option. It is frameless and keeps sight lines open. OBEX also builds a dedicated Whiteboard panel, code WB, a double-sided dry erase markerboard 3/8 inch overall in a clear anodized aluminum frame. Whiteboard is built to order for cubicle-mounted screens rather than picked from the standard tables, so send us the sizes and we will quote it.
Twelve product families
Fit the screen to the way the space works.
Mount to a cubicle, desk, or table. Choose freestanding or mobile separation. Add acoustic treatment where the application calls for it.
Core screen systems
Four mounting approaches cover most existing cubicles, desks, tables, and reception surfaces.

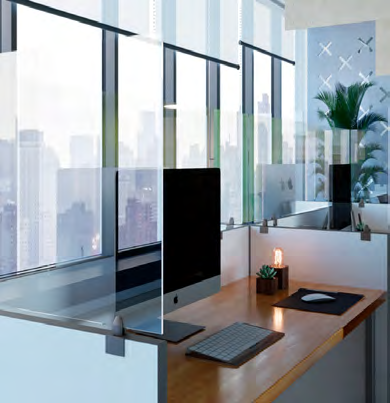

Cubicle mounted panel extenders
Add height and separation above compatible existing workstation panels. Two panel brackets and hardware are included with standard configurations.
CA clear acrylic · FA frosted acrylic · PET · A acoustical fabric · P polycarbonate

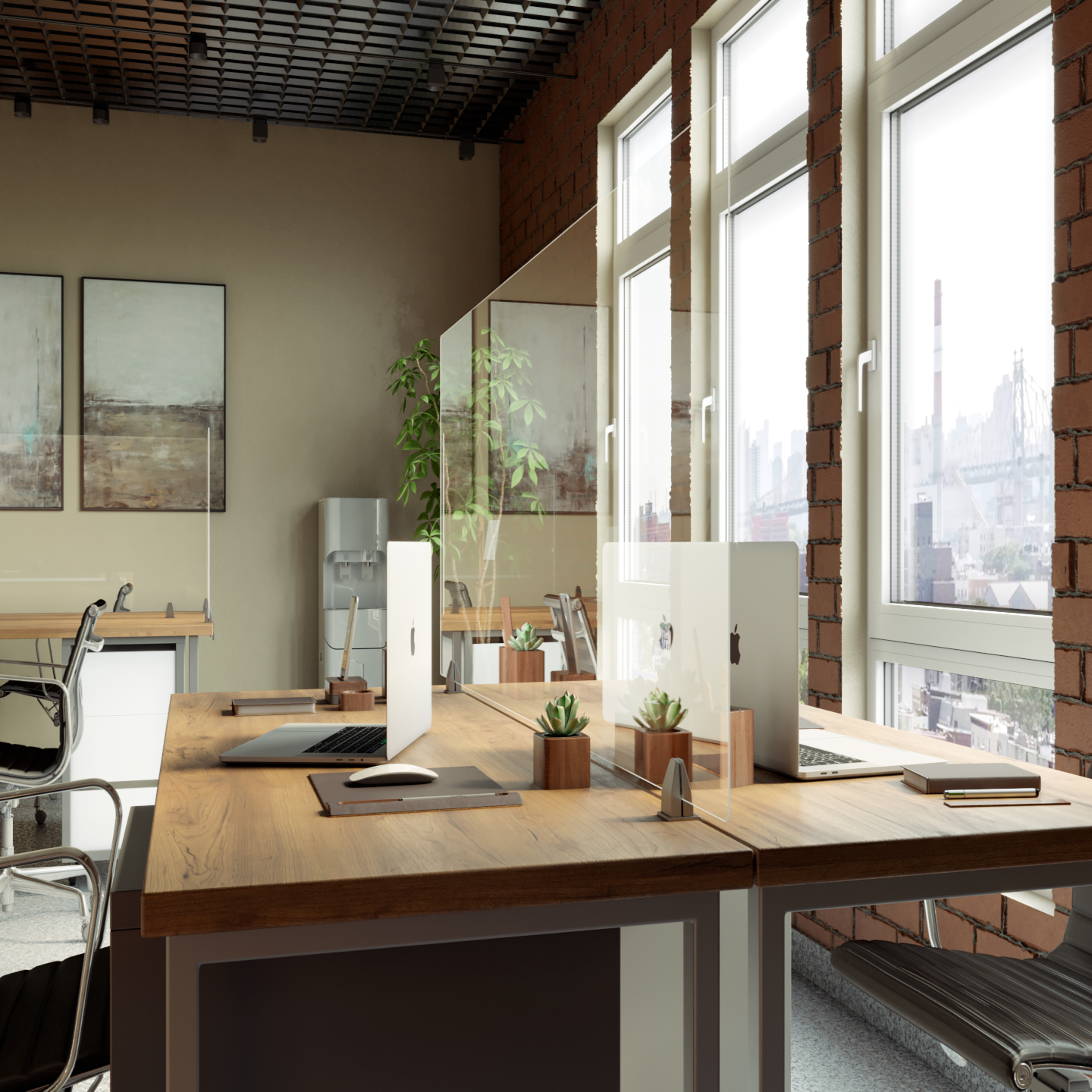

Desk mounted screens
C-clamp brackets attach front to back or side by side on compatible work surfaces from 0.75 to 2.5 inches thick.
CA clear acrylic · FA frosted acrylic · PET · A acoustical fabric · P polycarbonate
Freestanding screens
Movable screens use two 2 by 8 inch anodized aluminum feet with non-skid pads.
CA clear acrylic · FA frosted acrylic · PET · A acoustical fabric · P polycarbonate
Modesty and screw-in screens
Mount above a surface for privacy or below a desk to screen the underside of the work area.
CA clear acrylic · FA frosted acrylic · PET · A acoustical fabric · P polycarbonateSeparation screens
Purpose-built acrylic configurations create separation across cubicle returns, paired workstations, shared tables, and learning spaces.

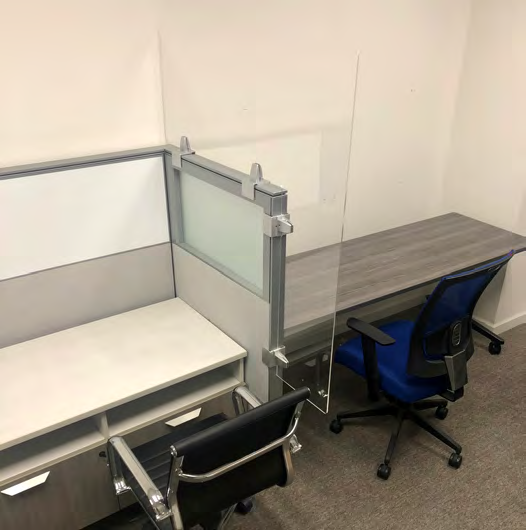

Cubicle separation screens
A three-bracket screen sits flush with an existing cubicle wall and extends separation around the return.
Clear acrylic · Frosted acrylic

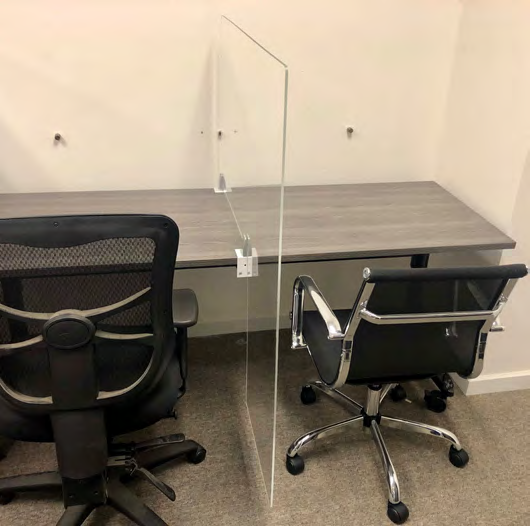

Workstation separation screens
An adjustable bracket fits work surfaces from 0.75 to 2.5 inches thick and positions acrylic around paired desks.
Clear acrylic · Frosted acrylic

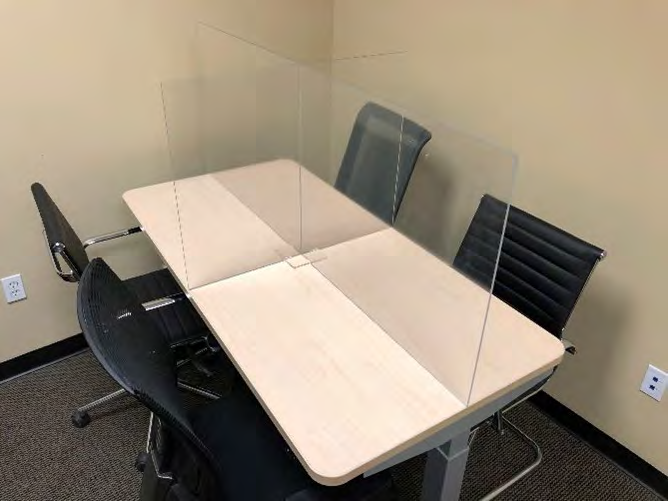

Table separation screens
Base brackets add stability for clear acrylic screens on conference, breakroom, and study tables.
Acrylic configurations shown · Custom sizing available

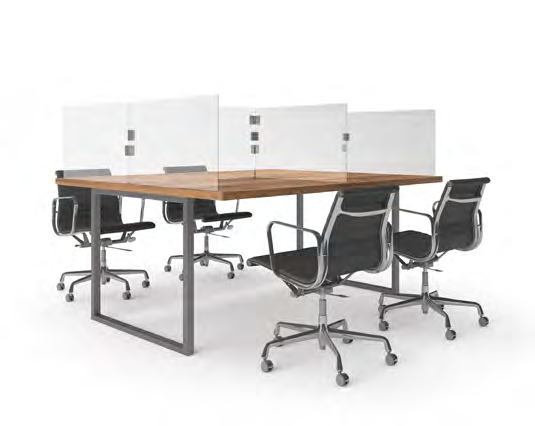

School separation screens
A three-screen set uses a front panel, two wing panels, and alignment clips to divide shared learning tables.
Clear acrylic configuration shown · Custom sizing availableDoors, mobile dividers & acoustic surfaces
Newer OBEX families extend the line beyond mounted screens and are specified from current manufacturer information.
Cubicle doors
Sliding doors attach to compatible cubicle trim using standard or large panel brackets.
Polycarbonate · Acoustical fabric · PET
Mobile office dividers
Freestanding panels on four locking casters create movable zones in multipurpose work and learning spaces.
Acoustical fabric · Polycarbonate

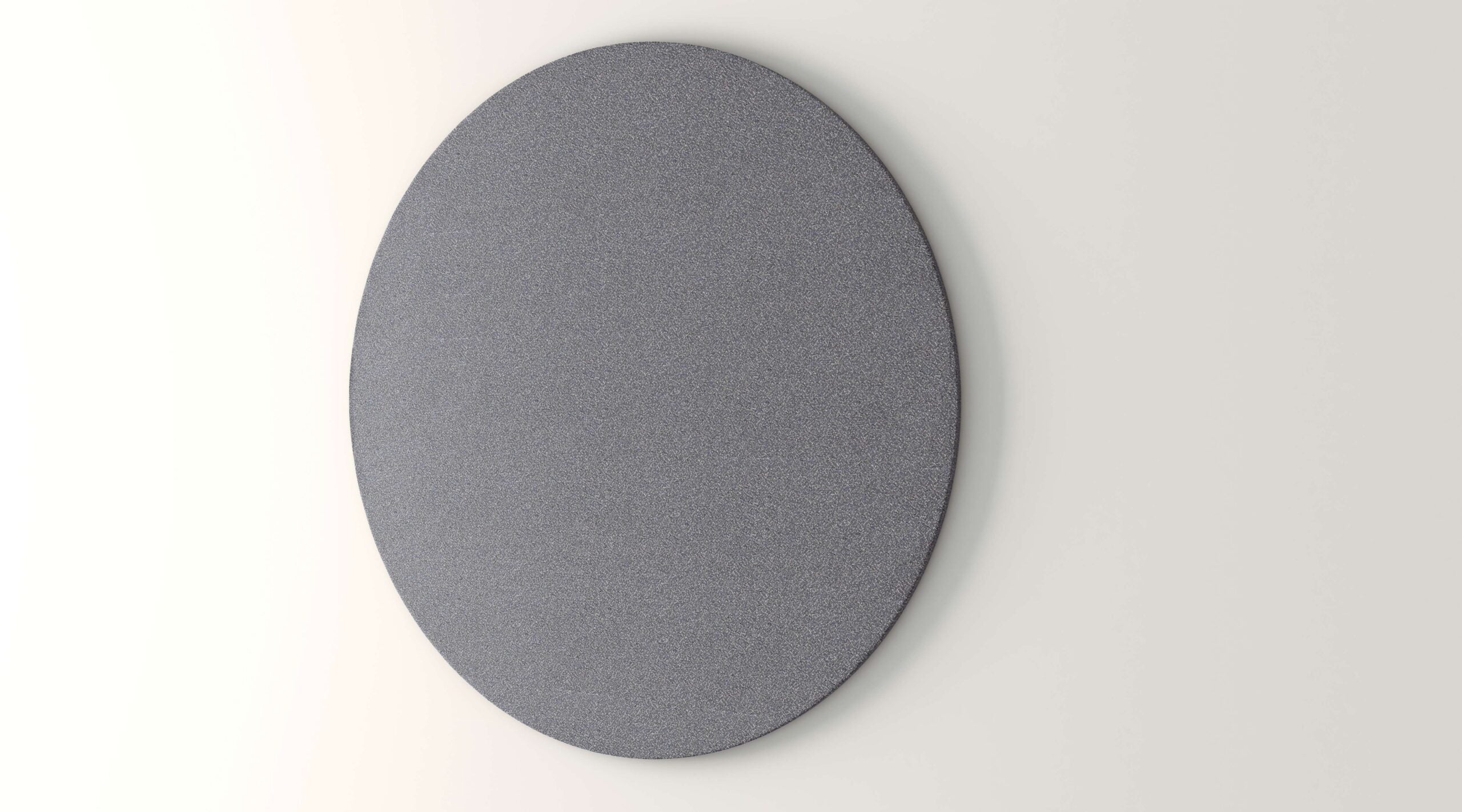

Tack boards
Wall-mounted fabric tack boards combine a usable posting surface with an acoustical board construction.
Acoustical fabric · Custom shapes and sizes

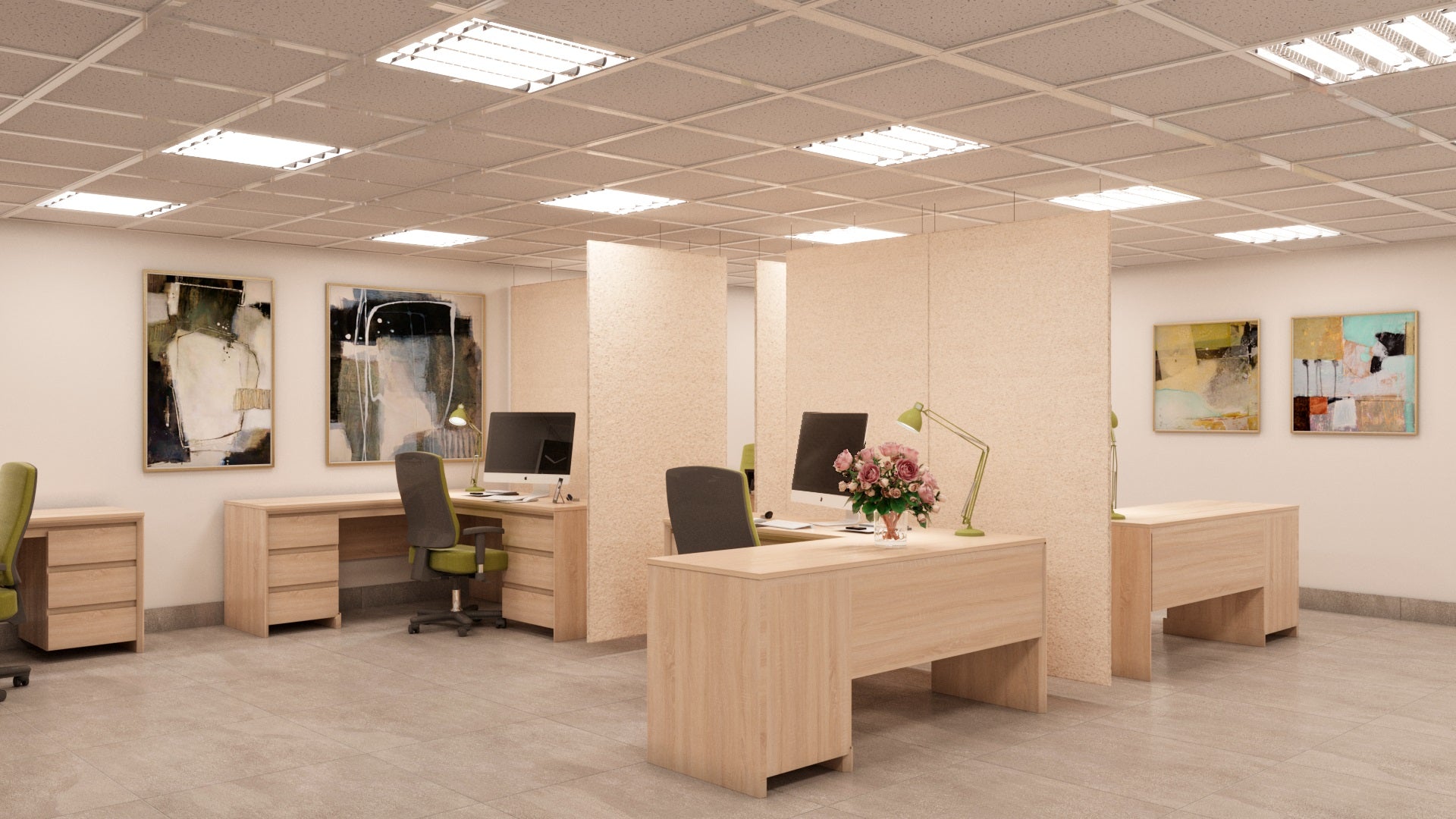

Sound baffling
Wall-mounted and ceiling-hung panels address echoes and reverberation in open offices and shared rooms.
PET · Acrylic · Polycarbonate · Custom sizing availableBracket selector
Measure before you specify.
For a cubicle-mounted panel, measure the thickness of the existing panel and select the matching bracket code. Desk, screw-in, and freestanding applications use their own hardware.
Standard cubicle-mounted and desk-mounted screen configurations include two brackets and the required hardware. Alignment clips are available for straight, two-way, three-way, and four-way layouts.
- Small panel bracket
- Fits cubicle panels from 1 to 1.5 inches thick.
- Standard panel bracket
- Fits cubicle panels from 1.5 to 2.5 inches thick.
- Large panel bracket
- Fits cubicle panels from 2.5 to 3.75 inches thick.
- Desk-mount bracket
- Fits compatible work surfaces from 0.75 to 2.5 inches thick.
- Screw-in bracket
- Screws to the top or underside of a compatible surface. Framed versions may use the MP code.
- Freestanding feet
- Two 2 by 8 inch feet with non-skid pads support each standard freestanding panel.
Specification reference
Five catalogue materials, plus made-to-order whiteboard.
The material code is part of the OBEX part number. Material availability depends on the selected product family.
WB · Whiteboard (made to order)
Double-sided dry erase markerboard, 3/8 inch overall, framed in clear anodized aluminum. Roughly 15 lbs at 18 by 60 inches. Quoted per project rather than from the standard size and material tables.
CA · Clear acrylic
Frameless 1/4 inch acrylic. Dry-erasable, and the choice when you want a writable surface that still lets light and sight lines through. Transaction cut-outs are available.
FA · Frosted acrylic
Frameless 1/4 inch acrylic that adds visual separation while allowing light through the panel.
P · Polycarbonate
1/2 inch twin-wall polycarbonate in translucent or white, framed in anodized aluminum.
A · Acoustical fabric
Fabric over acoustical board in an aluminum frame. The surface is tackable, with 20+ fabric selections in the OBEX program.
PET · Polyester acoustical
3/8 inch recycled polyester material. PET is frameless, lightweight, tackable, and intended for acoustic absorption.
Part-number pattern
HEIGHT x WIDTH + MATERIAL + OPTIONS + BRACKET
12x24CA-SP: clear acrylic with standard panel bracket18x48P-A-T-SP: translucent polycarbonate with aluminum frame and standard panel bracket24x30PET-SA-DM: Sand PET with desk-mount bracket18x60WB: whiteboard panel, 18 inches high by 60 inches wide
| Program | Standard heights | Standard widths | What to confirm |
|---|---|---|---|
| Mounted and freestanding screens | 12, 18, and 24 inches. A 30 inch height is offered in many configurations. | 24, 30, 36, 42, 48, 60, 66, and 72 inches. | Available height and width combinations vary by material and mounting style. |
| Custom sizes | Custom dimensions are available across the screen program. | Provide the existing furniture dimensions and desired panel coverage. | |
| Acrylic cut-outs | The standard opening is 3 by 12 inches. Custom cut-outs are available. | Confirm opening location, panel orientation, and mounting style. | |

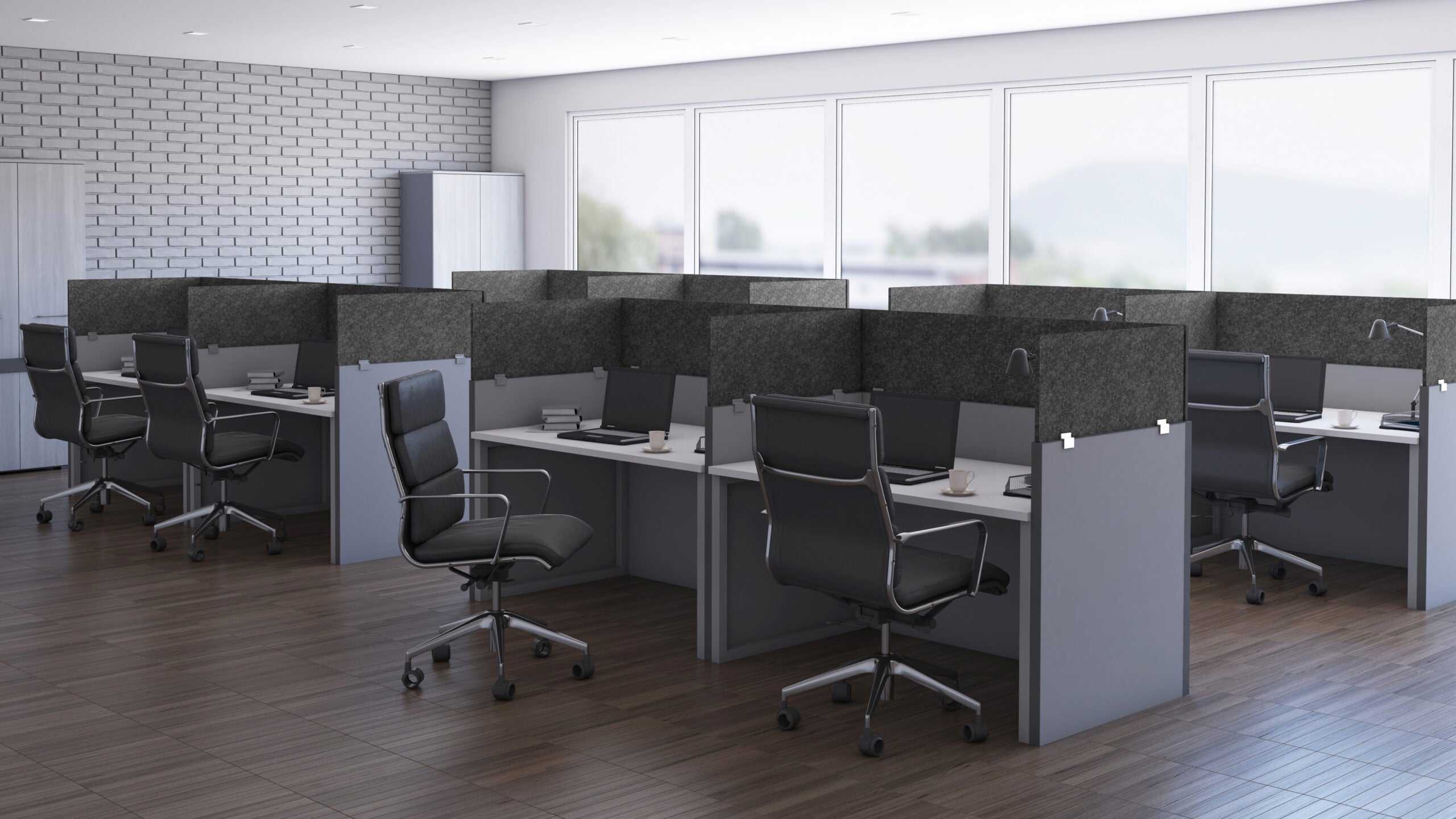

PET acoustic panels
The existing acoustic story, put in the right place.
PET is one of the five OBEX materials, not the whole line. It is available in several mounted and freestanding screen families when tackability and acoustic absorption are part of the project.
- 3/8 inch recycled polyester material
- Frameless and lightweight
- Tackable surface
- Multiple color selections, confirmed with the current quote
Send us the furniture dimensions and the application.
Miramar Office Furniture can help confirm material, mounting style, bracket fit, custom sizing, delivery, and professional installation for San Diego & Southern California projects.
Start an OBEX projectManufacturer reference: OBEX Panel Extenders official website.
